DYNAMIC IMAGING TEST

Sediment Thickness
Pile Imaging Test (STPIT)


Advanced sediment thickness assessment solutions for construction quality verification and deep foundation assurance.

Overview

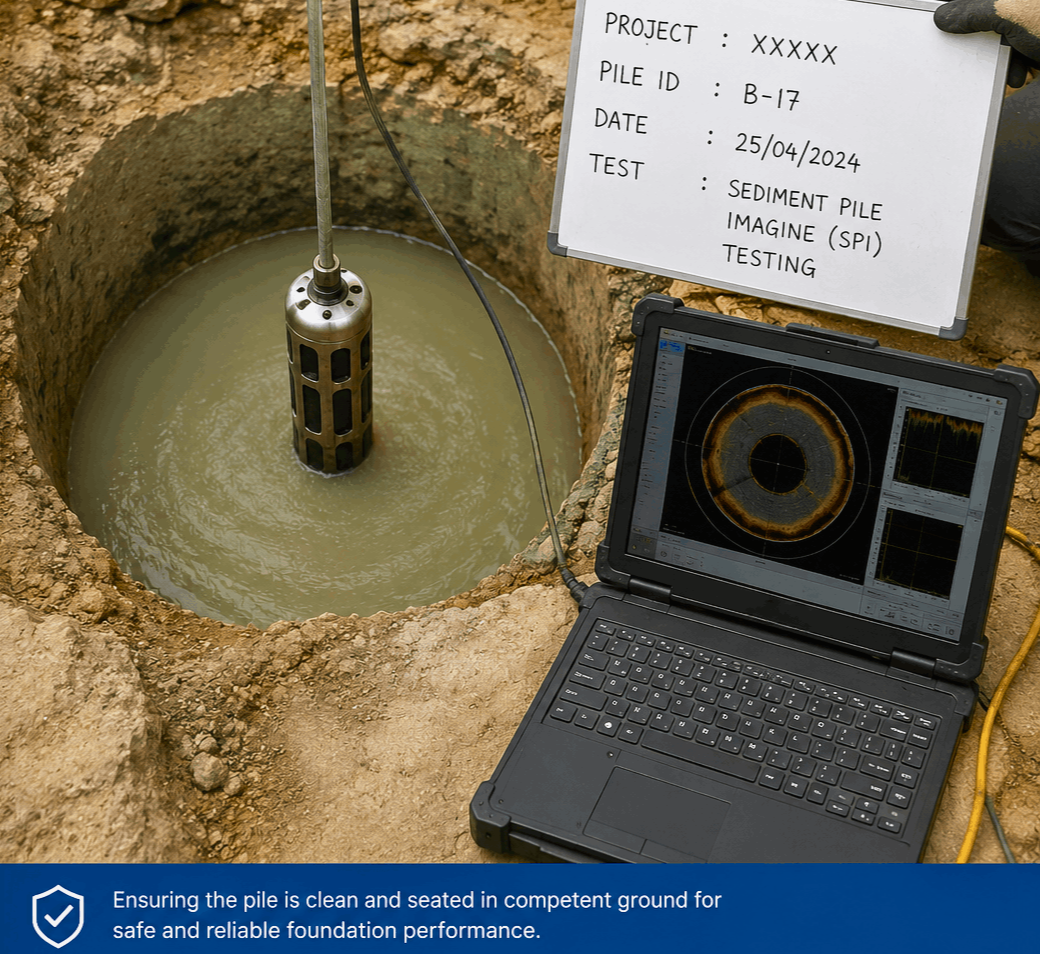

  • The Sediment Thickness Pile Imaging Test (STPIT) is used to evaluate and measure sediment or slurry cake accumulation at the base of drilled shafts and bored piles prior to concrete placement.
  • YJACK Technology performs sediment thickness assessments to verify borehole cleanliness, support foundation quality control, and ensure compliance with project specifications before the construction process proceeds.

Project Applications

Bridge
Infrastructure

Railway
Systems

High-Rise
Developments

Marine &
Offshore Structures

Large Diameter
Drilled Shafts

Borehole Foundation Construction

Engineering Capabilities

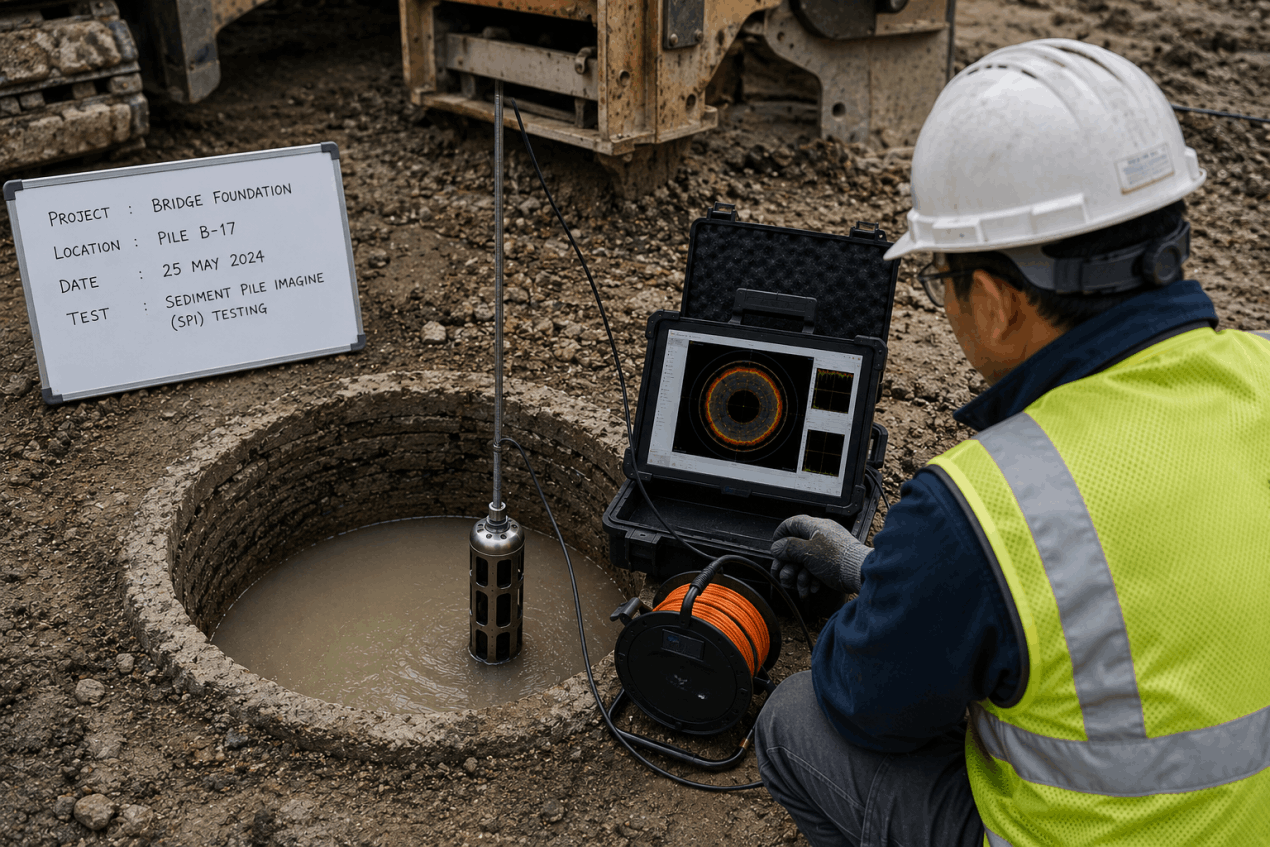

Advanced imaging and measurement systems are used to assess sediment accumulation and borehole conditions at pile toe level prior to concreting operations.

Detailed engineering evaluation supports compliance verification, construction quality control, and foundation readiness assessment to minimize potential construction risks.
